Technical Data
Middle Stripping: 200pcs
Diameter of Catheter:1mm~6mm
Cable Type:AWG32#-AWG12#(6mm2)
Cutting Length：1mm~9999mm
Stripping Length: Front 0～30mm Middle 0～20mm Rare 0～30mm
Cutting Tolerance:(0.002×L0mm
Output:1500～3000pcs/Hour

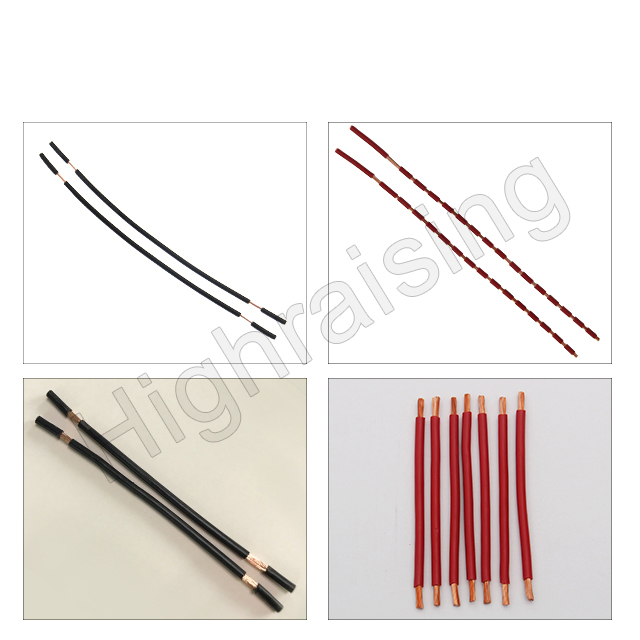

Stripping Method: long stripping, short stripping, multi layers strippingMachine Introduction

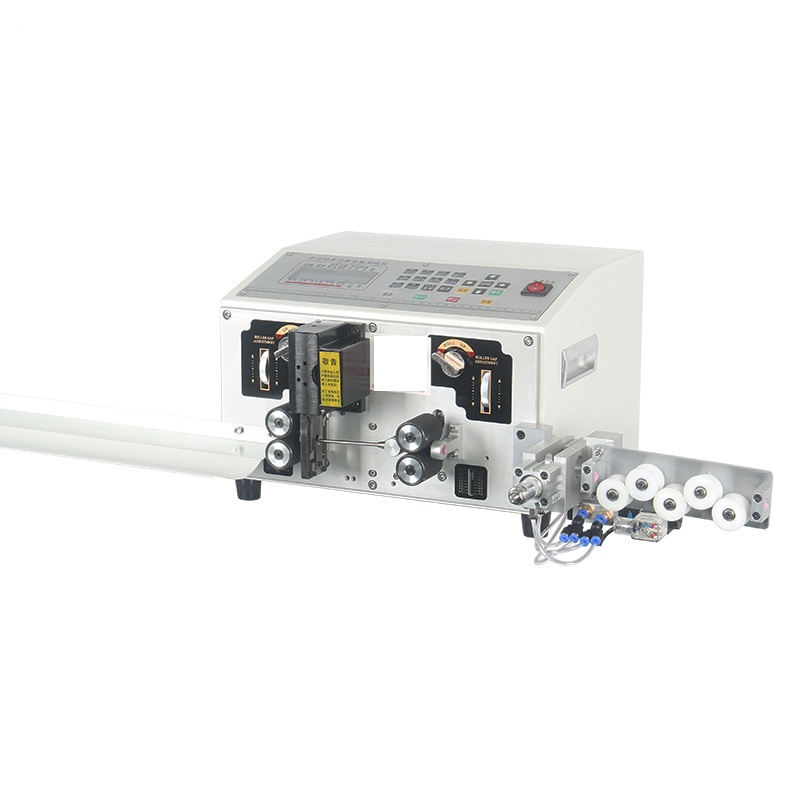

This machine adopts 32-bit intelligent control system. It switches LCD display in Chinese and English. It can store hundreds of information and can be called at any time. It is convenient and fast,designed for flat cables, multi-core flat cables and parallel cables processing. The part of the splitting die is made of the imported blade,from the top to the bottom to divide the wires.Blade is ultra-thin and sharp. After cable separating,it is neat and non-deformed. It is more convenient to put on the upper automatic terminal and press the terminal. It can be fully automatic.Cutting, peeling, splitting, semi-stripping, and full stripping functions can be achieved are in one time, and the function of the ordinary cutting machine is compatible, which not only saves labor and time, but also improves productivity.
Technical Data
Middle Stripping: 200pcs
Diameter of Catheter:1mm~6mm
Cable Type:AWG32#-AWG12#(6mm2)
Cutting Length：1mm~9999mm
Stripping Length: Front 0～30mm Middle 0～20mm Rare 0～30mm
Cutting Tolerance:(0.002×L0mm
Output:1500～3000pcs/Hour
Stripping Method: long stripping, short stripping, multi layers stripping
