Technical Data:
|
Model |
HR-602S |
|
Cable Size |
0.2-0.5 Sq mm |
|
Cutting Number |
5 pc |
|
Cutting Length |
10-600mm |
|
Front Strip |
1-9mm（Half Strip 3-9mm） |
|
Rare Strip |
1-9mm（Half Strip 3-9mm） |
|
Output |
6000 Pcs/H（Length 40mm） |
|
Cutting Accuracy |
0.1mm |
|
Motor |
Mitsubishi servo motor |
Machine Introduction:

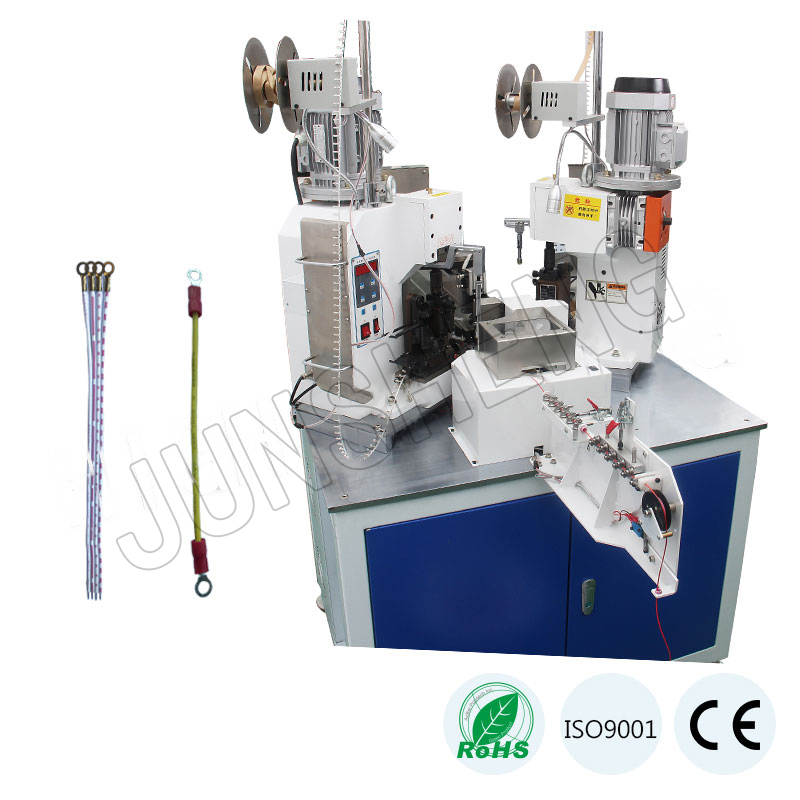

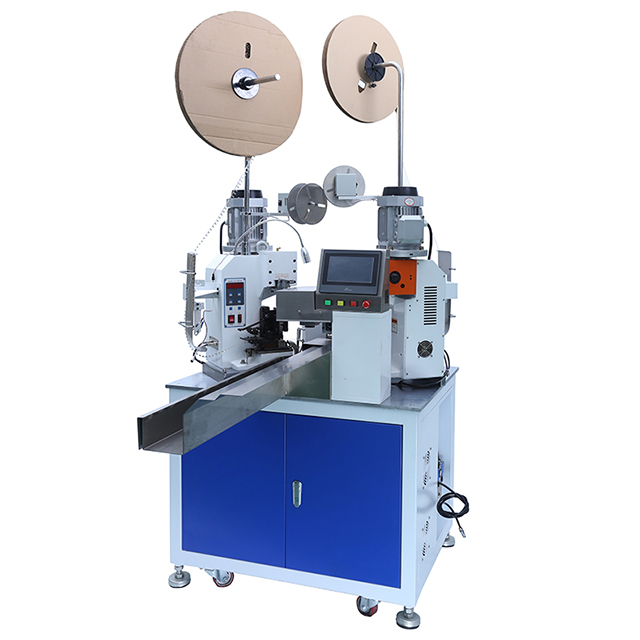

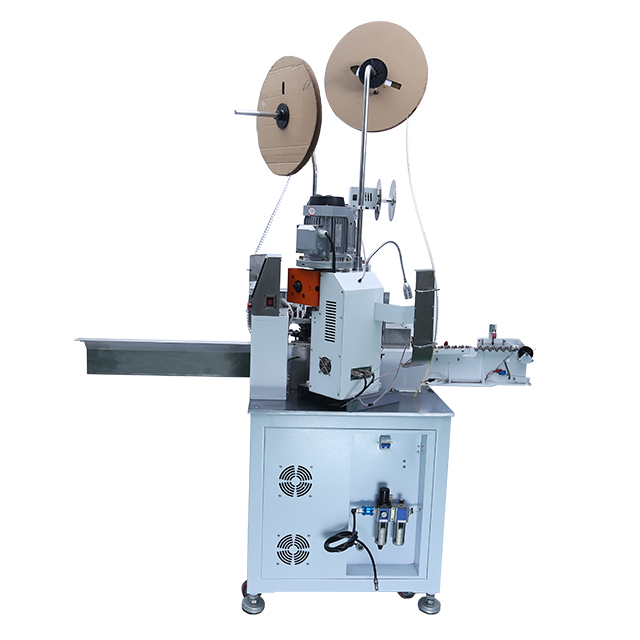

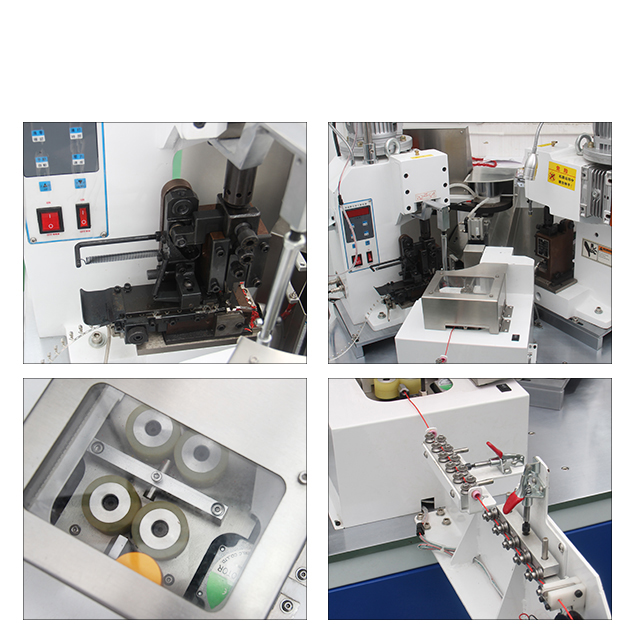

HR602S is with function of wire feeding, cutting, stripping,crimping All in One type machine. It is with digital control screen and imported spare parts. Worker can easily operate after training, it is easy to adjust the cutting length, depth and position of terminal. And output of this machine is higher than other machines for terminal crimping which lower cost of factory.
Technical Data:
|
Model |
HR-602S |
|
Cable Size |
0.2-0.5 Sq mm |
|
Cutting Number |
5 pc |
|
Cutting Length |
10-600mm |
|
Front Strip |
1-9mm（Half Strip 3-9mm） |
|
Rare Strip |
1-9mm（Half Strip 3-9mm） |
|
Output |
6000 Pcs/H（Length 40mm） |
|
Cutting Accuracy |
0.1mm |
|
Motor |
Mitsubishi servo motor |
