Technical Data
|
Model |
HR-01B |
|
Cable Size |
AWG#16-AWG#32(OD0.3-3.0mm） |
|
Cutting Number |
5-8-10-14 Pcs |
|
Cutting Length |
8-6000mm |
|
Front Stripping |
0.1-9.9mm（half stripping 2-12mm） |
|
Rare Stripping |
0.1-9.9mm（2-6mm） |
|
Soldering Length |
0.1-9.9mm |
|
Twisting Length |
3-8mm |
|
Output |
25000pc/H（Length 40mm） |
|
Cable Type |
UL/PVC/PE Electric Wire,Silicon Wire,Enameled Wire, Teflon Wire |
|
Customized Product |
Single Wire, Flat Cable and more |
Machine Introduction:

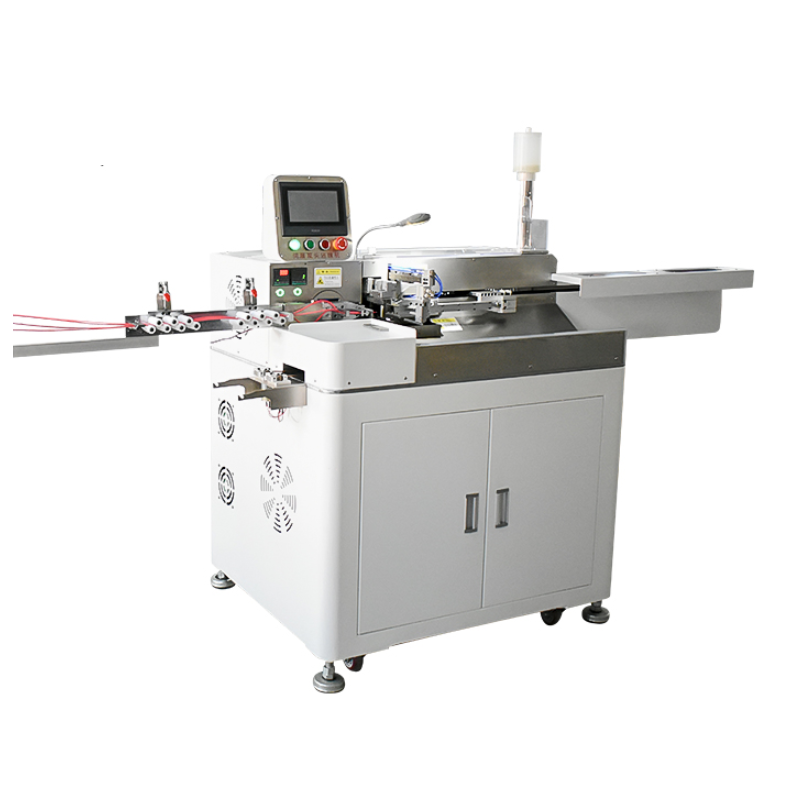

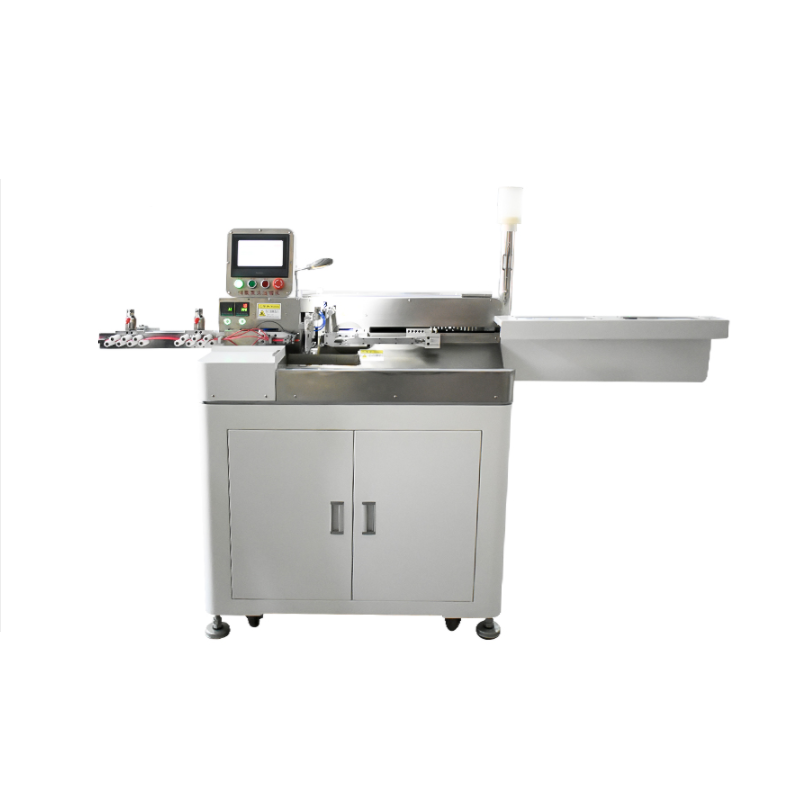

HR-01B is designed with full automation, simple structure, high precision and intelligent operation. It is with function of wire cutting stripping, twisting and soldering. And it can be with double ends stripping and soldering, single end stripping and soldering, single end half stripping twisting soldering, double ends stripping twisting soldering, extremely short stripping and soldering and more. Lead- free tin furnace which meets high environmental standards. HR-01B with automatic leaf free device which makes the whole process clean and less waste,90 degree angle with full tin. One machine can replace 5-8 person with high output, and one normal worker can operate 4 HR-01B machines.
