Technical Data
|
Model |
HR-1.8T |
|
Crimping pressure |
2000kg |
|
Motor power |
1/4HP |
|
Vertical stroke |
30MM |
|
Applicative copper tape |
2mm/4mm/6mm/8mm/10mm |

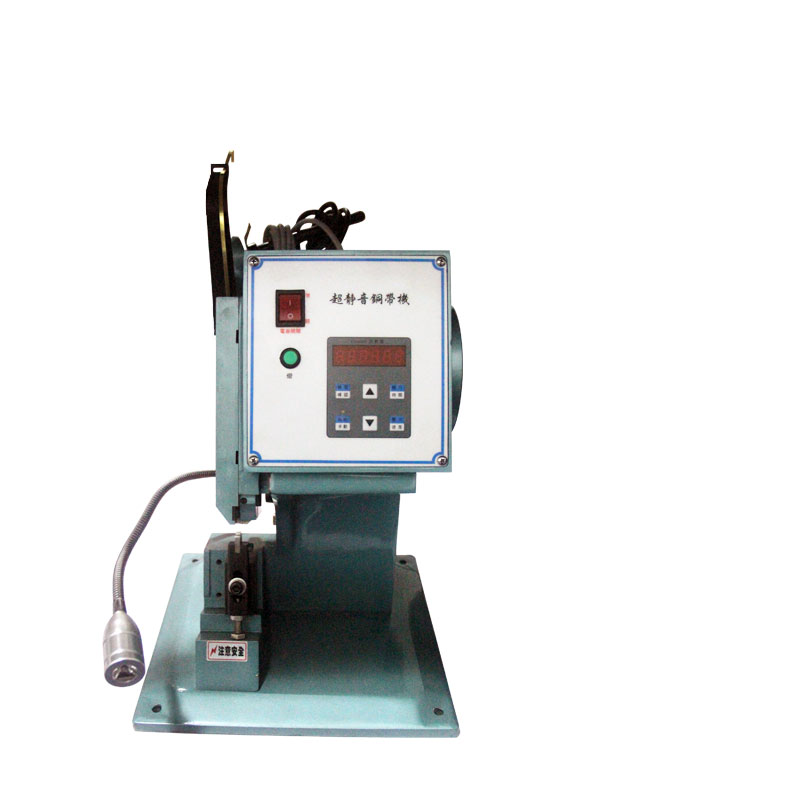

Machine Introduction
This machine adopts high-tech frequency conversion technology,electronic precise positioning, the motor only works less noise than the traditional copper belt machine when crimping and the power-saving mold adjustment is more convenient and fast,avoiding the common faults of traditional copper belt clutches and electromagnets.Designed for wire that requires riveting,it is fast and of good quality.Copper scrap will be connected by crimping manner to replace the traditional soldering method.No shortcomings of cold welding,air welding and air pollution.It is tested by various safety specifications (UL/JIS).Adopts the most simple and effective way.Cut and crimp the special continuous copper scrap terminal in one time,which saves cost.The copper scarp terminal is treated with special grain and riveted with strong tensile strength.Quality is stable.Widely used in the connection of xenon lamps and resistors,the connection between LEDs and wires,connection of sliding switches and wires (instead of hook welding),high temperature heating elements,and sensitive components (such as reed switches, thermostatic fuses), transformer taps.
Technical Data
|
Model |
HR-1.8T |
|
Crimping pressure |
2000kg |
|
Motor power |
1/4HP |
|
Vertical stroke |
30MM |
|
Applicative copper tape |
2mm/4mm/6mm/8mm/10mm |
