Technical Data
Model |
HR-305 |
Cable diameter |
7mm |
Stripping length |
50mm |
Crimping force |
31-37kg |
Air cylinder |
40mm |
Blade |
flat blade |
Air pressure |
3-7kg/cm2 |
Voltage |
220V |

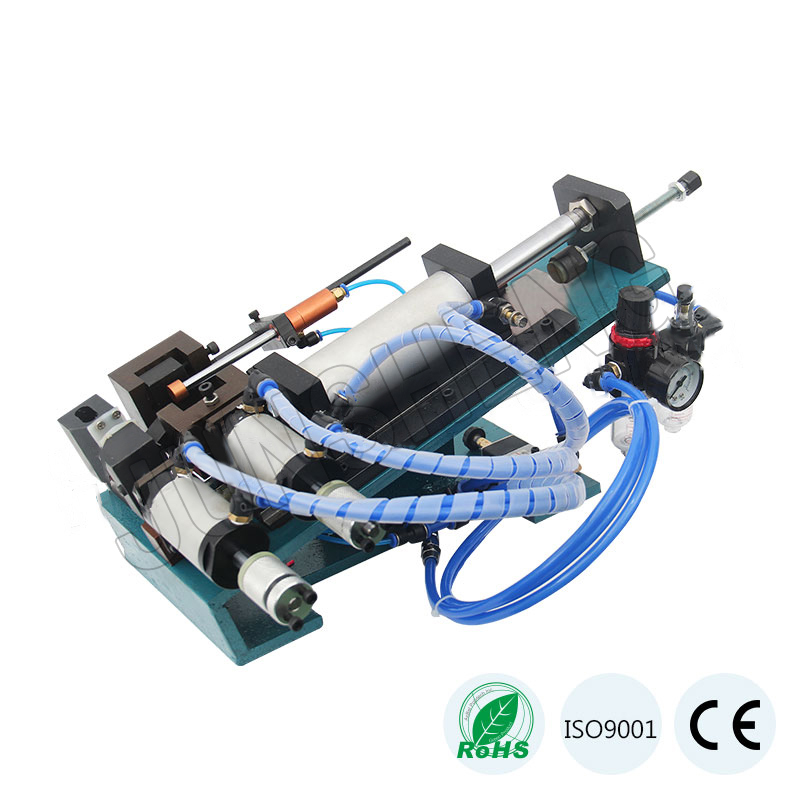

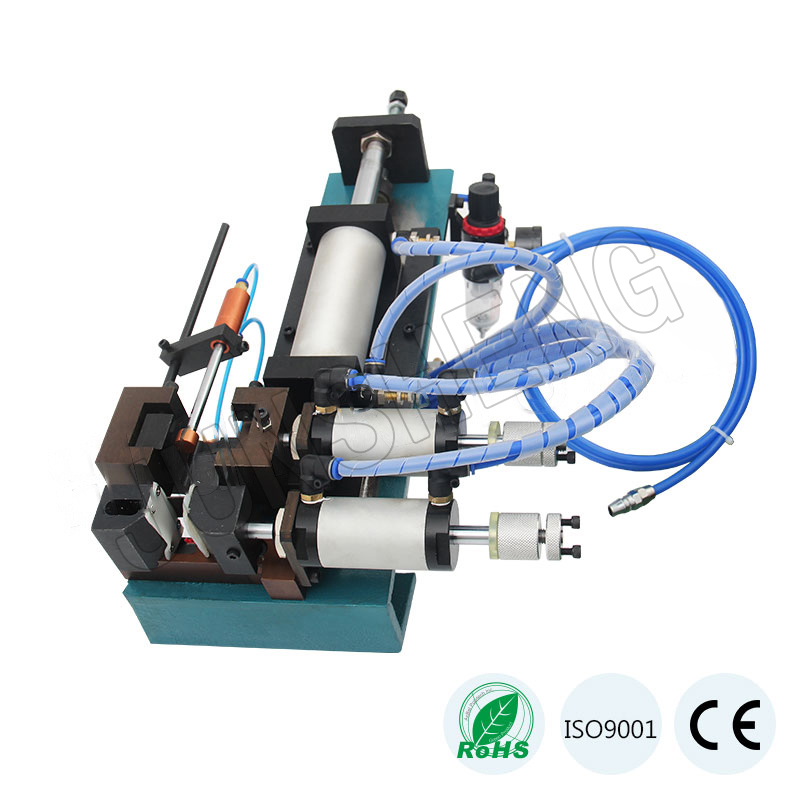

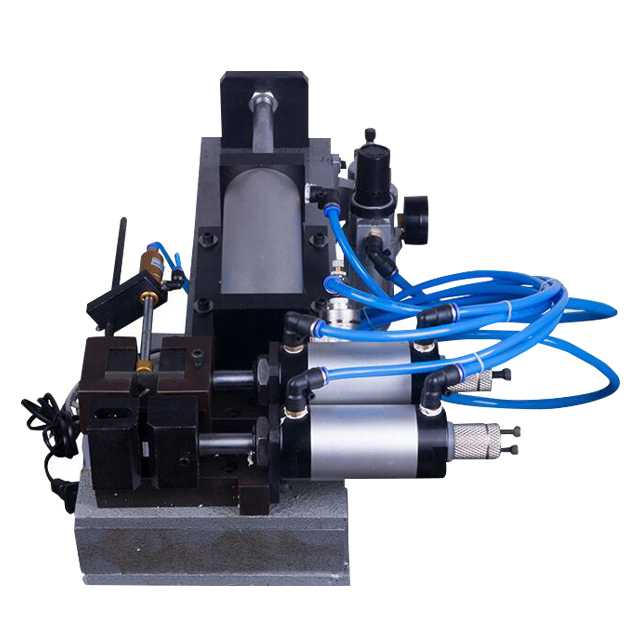

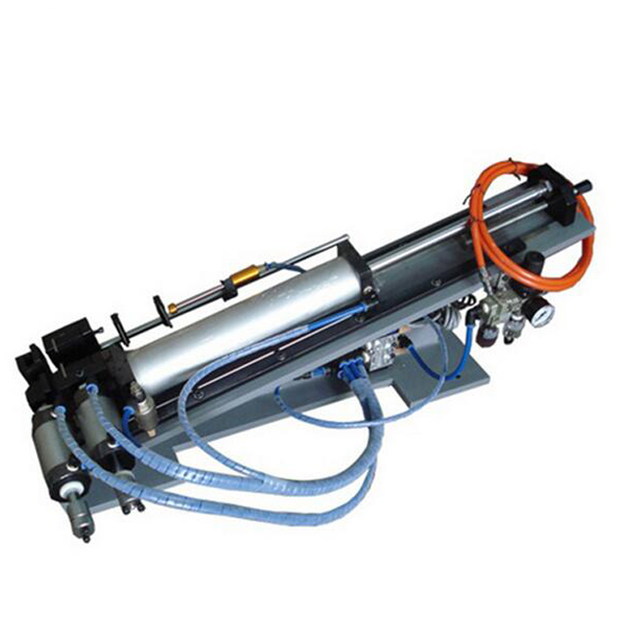

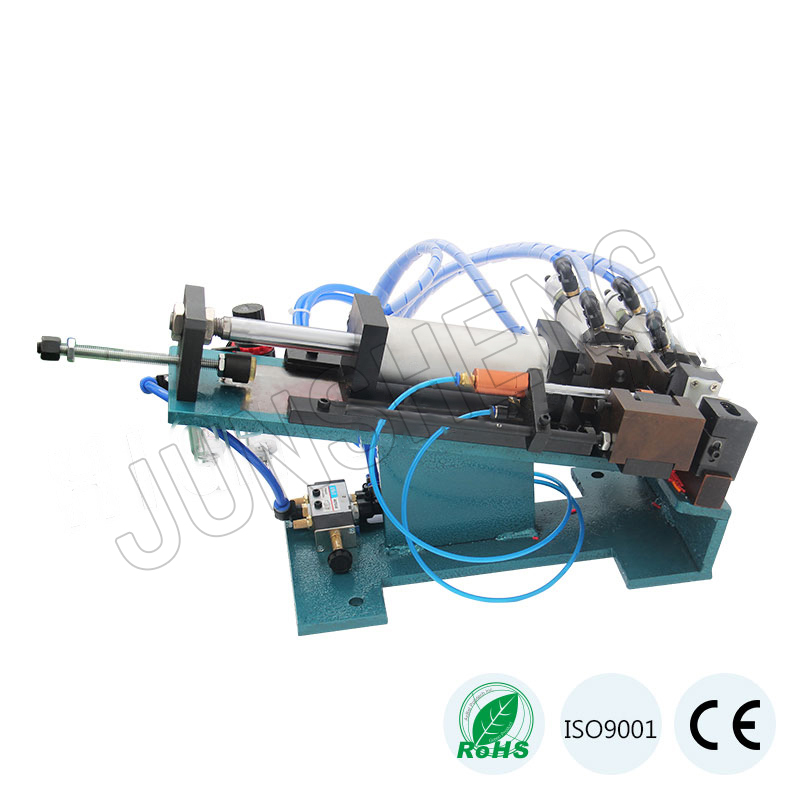

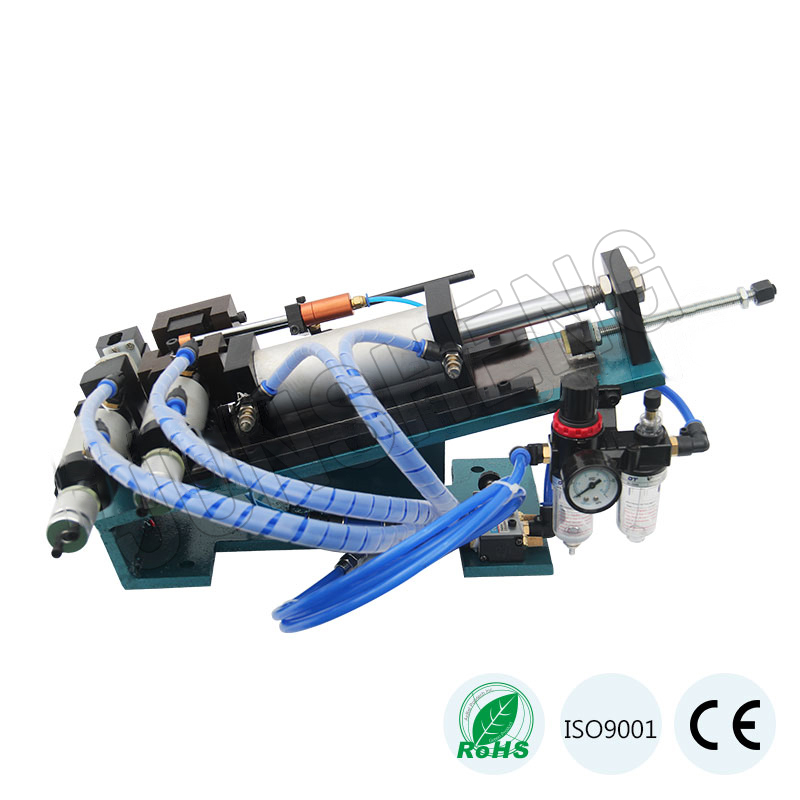

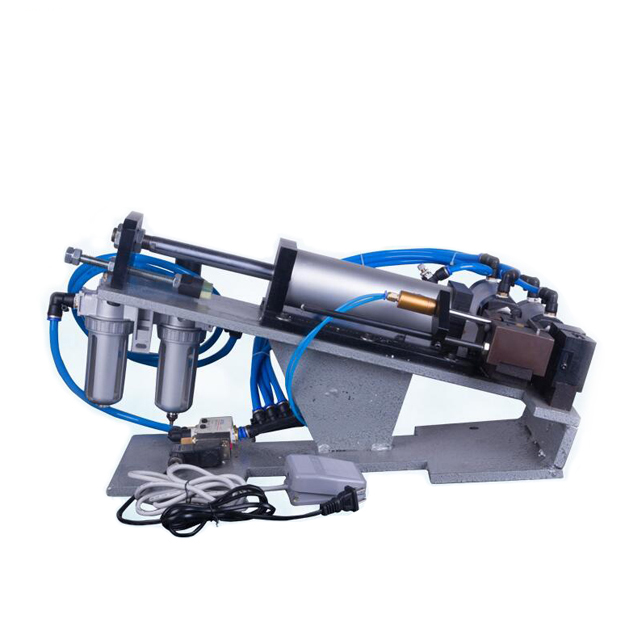

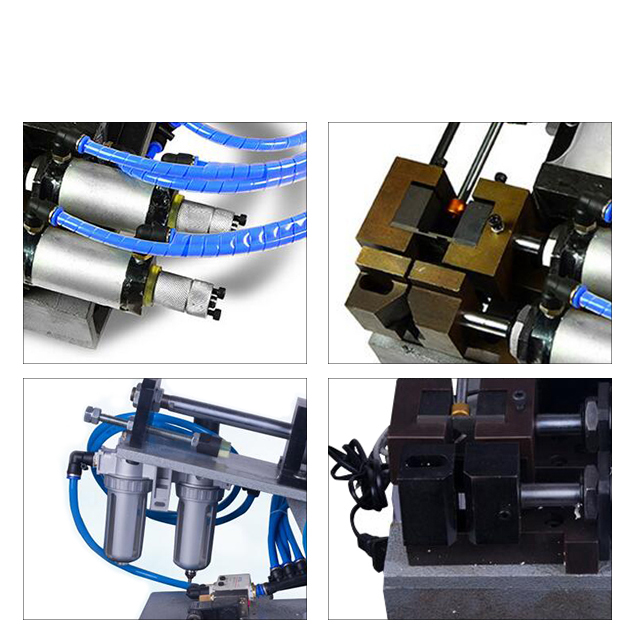

Machine Introduction
This machine is designed with a hatchback and it is ergonomic. Double-acting cylinder, no spring breakage.Exquisite die cutter, balanced stroke and precise cutting. Gas-electric control, light and agile, easy to work. Adjustable structure, adjusted for the thickness of the wire. Applicable to AC/DC power cord, computer cable, electronic wire, multi-core wire, special wire and other wires to the outer skin processing.
Technical Data
Model |
HR-305 |
Cable diameter |
7mm |
Stripping length |
50mm |
Crimping force |
31-37kg |
Air cylinder |
40mm |
Blade |
flat blade |
Air pressure |
3-7kg/cm2 |
Voltage |
220V |
