Technical Data
|
Model |
HR-508ZWT |
|
Cable diameter |
25qmm |
|
Cutting length |
0.1-9999.9mm |
|
Front end stripping |
0.1-30mm |
|
Back end stripping |
0.1-30mm |
|
Stripping speed |
2000-5000 pcs/h |
|
Cutting accuracy |
0.002*L |
|
Bending times |
10 |

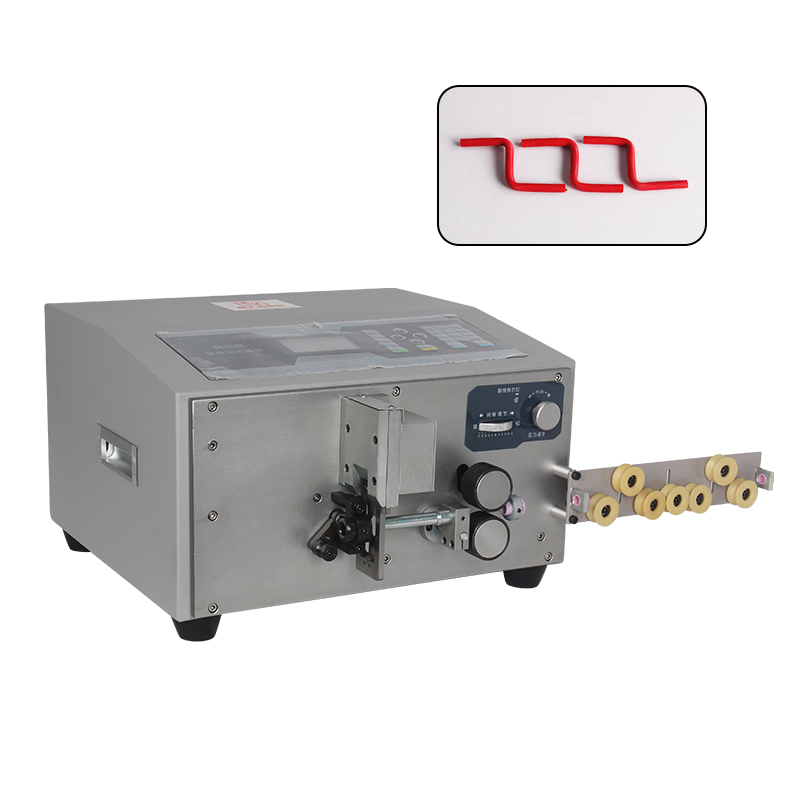

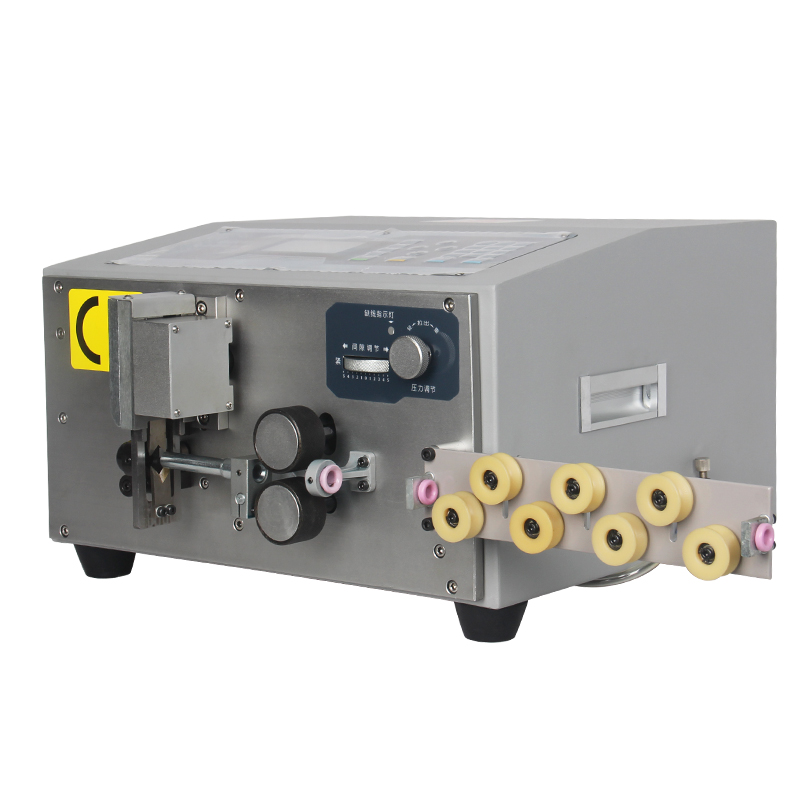

Machine Introduction
This machine adopts digital intelligent control device, button operation, stable performance, high precision, fast speed and easy operation. High-speed wire cutting, single-end peeling, bending, and can be bent clockwise or counterclockwise, the degree of bending can be adjusted: 30 degrees, 45 degrees, 60 degrees, 90 degrees, one cable can be folded forward and backward at the same time,when changing wire we just need to replace the wire conduit,and the memory function is designed to make the production setting faster and more convenient.Fully automatic cutting,peeling and bending can be achieved in one time.It saves labor and time and increases productivity. It can change the wire size instantly, and the economic effect is very high. Mainly used for meter box, meter cabinet, electric control box, electric control cabinet, the maximum stripping diameter is 25qmm,using the push cable principle and can control the shortest bending distance in 20MM, six-wheel power drive, accurate size. Stripping both ends and can be bent 10 times.
Technical Data
|
Model |
HR-508ZWT |
|
Cable diameter |
25qmm |
|
Cutting length |
0.1-9999.9mm |
|
Front end stripping |
0.1-30mm |
|
Back end stripping |
0.1-30mm |
|
Stripping speed |
2000-5000 pcs/h |
|
Cutting accuracy |
0.002*L |
|
Bending times |
10 |
