Technical Data
|
Model |
HR-3FN |
|
Function |
Cutting stripping and twisting |
|
Cable diameter |
0.5mm-0.75mm |
|
Stripping length |
2.5-25mm |
|
Air pressure |
3-7.5kg/cm |
|
Voltage |
220V |

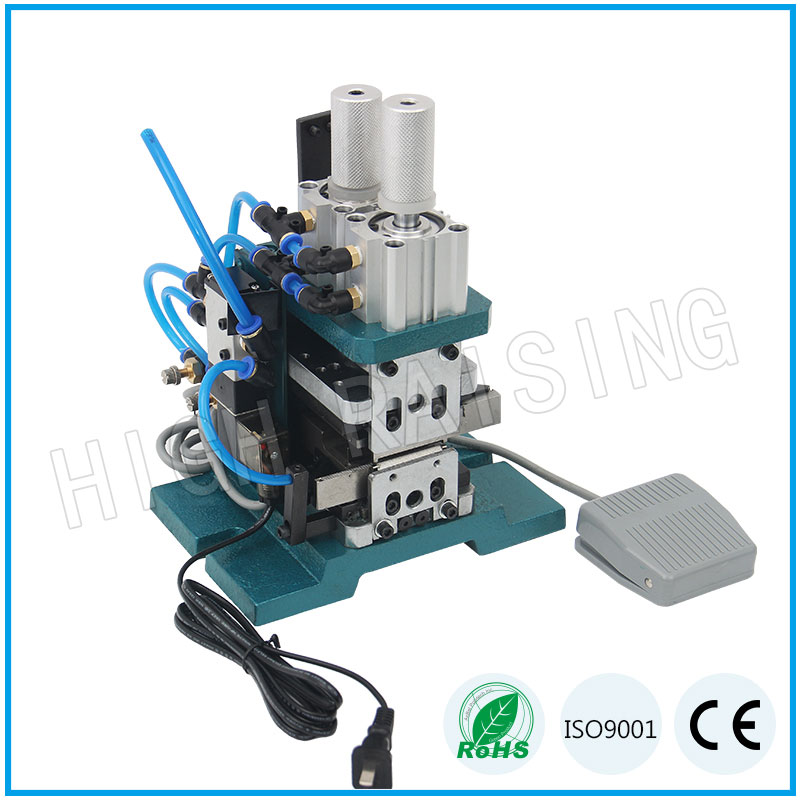

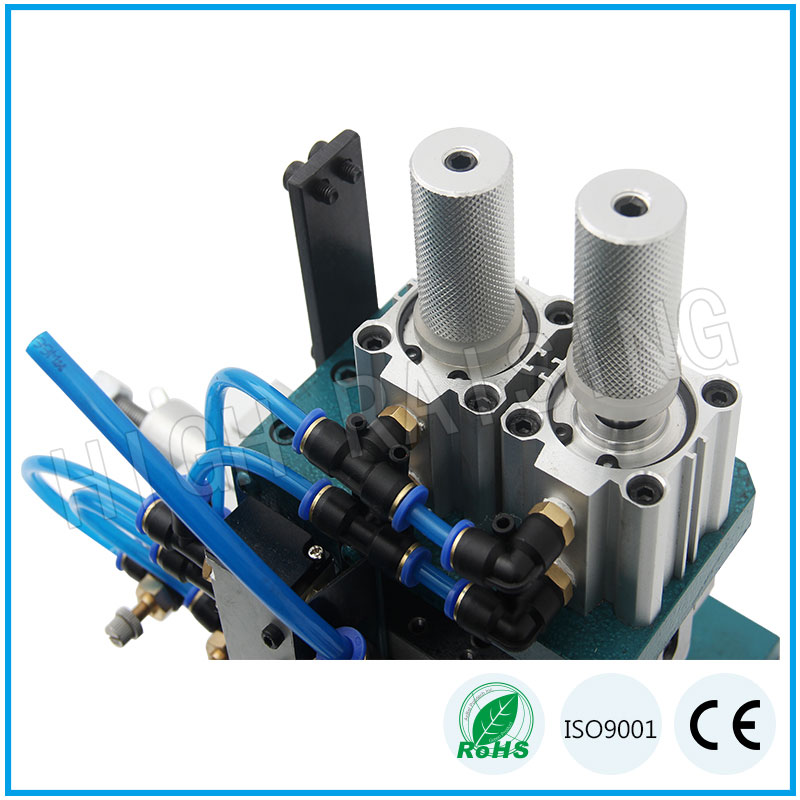

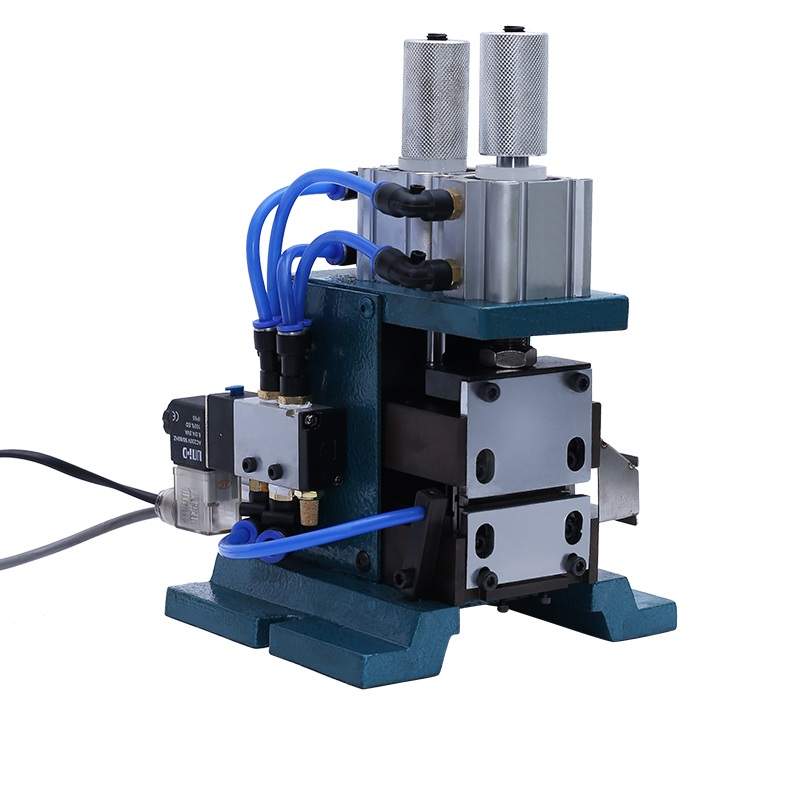

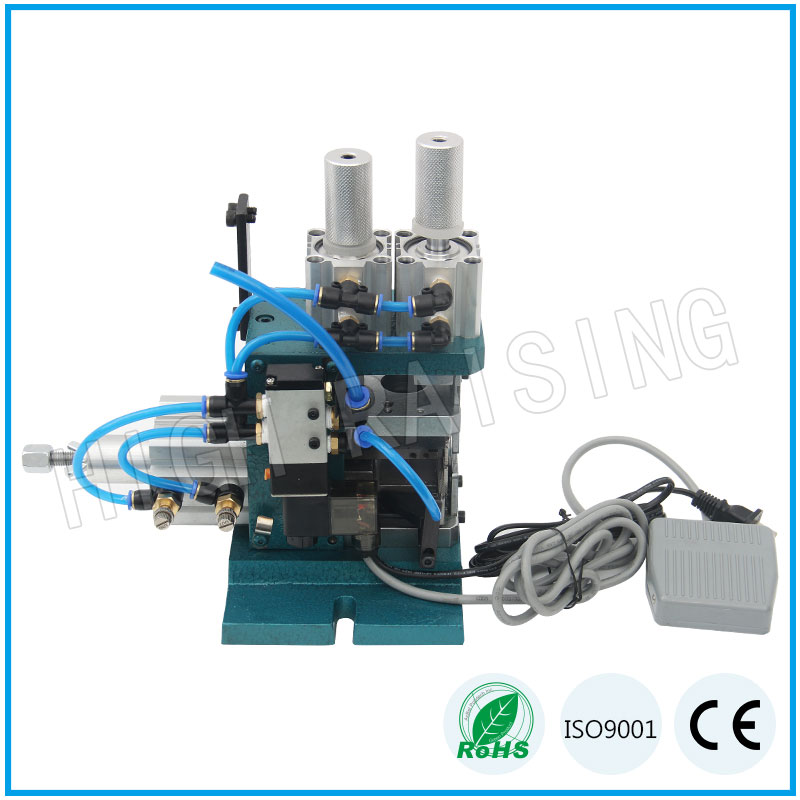

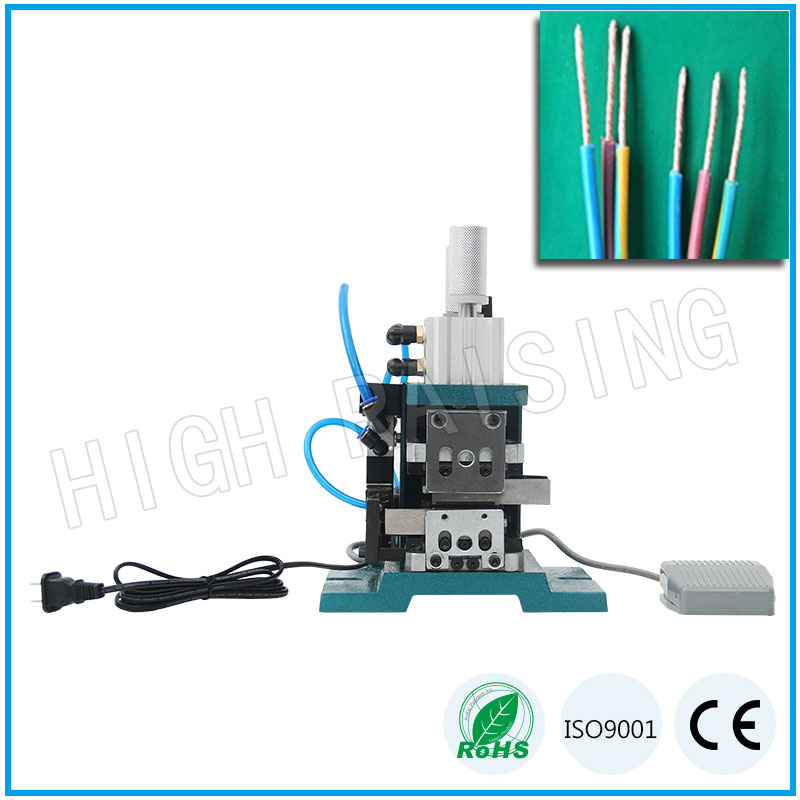

Machine Introduction
This machine improves the traditional computer core wire stripping with the pedal hand-drawn method, and evolves into the front clip back-retracting mode, that saves physical strength and improves efficiency. During operation, cables can be placed to the right and left, and the distance between the blade and the holder is shortened, so that the special short cable can be used by the machine.Double-knife design,stripping and cutting in one time,increasing or decreasing the gasket to a fixed length, it is accurate and rapid.Mainly for the stripping some special wires in the wire industry, such as computer core wire, isolation wire, telephone wire, cable and other thin wires, general wire diameter AWG#18-32 and above 0.5mm special wire can be worked by this machine.
Technical Data
|
Model |
HR-3FN |
|
Function |
Cutting stripping and twisting |
|
Cable diameter |
0.5mm-0.75mm |
|
Stripping length |
2.5-25mm |
|
Air pressure |
3-7.5kg/cm |
|
Voltage |
220V |
