Model |
HR-12H |
|
Cable Size |
AWG16#-AWG28# |
|
Terminal Type |
Transverse Terminal, Straight Terminal, Flag Terminal |
|
Cutting Length |
50-9999mm |
|
Front Stripping |
1-8mm（Half Stripping Length2-8mm） |
|
Rare Stripping |
1-8mm（Half Stripping Length 2-6mm） |
|
Output |
2500-4500Pcs/H，L=100mm |

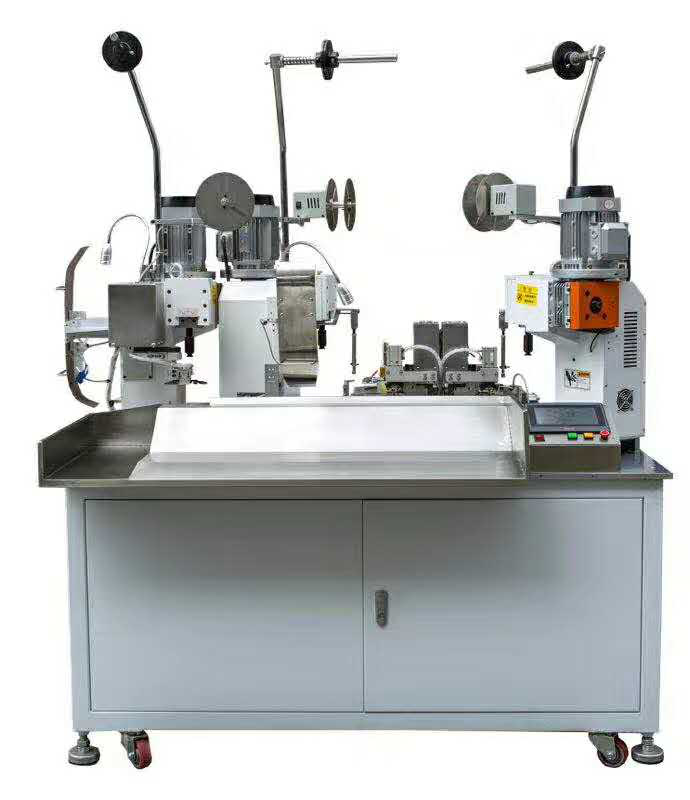

Machine Introduction
HR-12H is designed with accurate cutting, both ends stripping, single end half stripping, single wire both ends stripping, double wires crimping, double wires single crimping, three ends crimping and more. Modular design makes the machine adjusting much easier. Standard spare parts reduce the maintain cost .HR-12H is featured with high level electric control unit as well as individual software, it is easy for workers to learn and operate two HR-12H after simple training.
Technical Data
|
Model |
HR-12H |
|
Cable Size |
AWG16#-AWG28# |
|
Terminal Type |
Transverse Terminal, Straight Terminal, Flag Terminal |
|
Cutting Length |
50-9999mm |
|
Front Stripping |
1-8mm（Half Stripping Length2-8mm） |
|
Rare Stripping |
1-8mm（Half Stripping Length 2-6mm） |
|
Output |
2500-4500Pcs/H，L=100mm |
