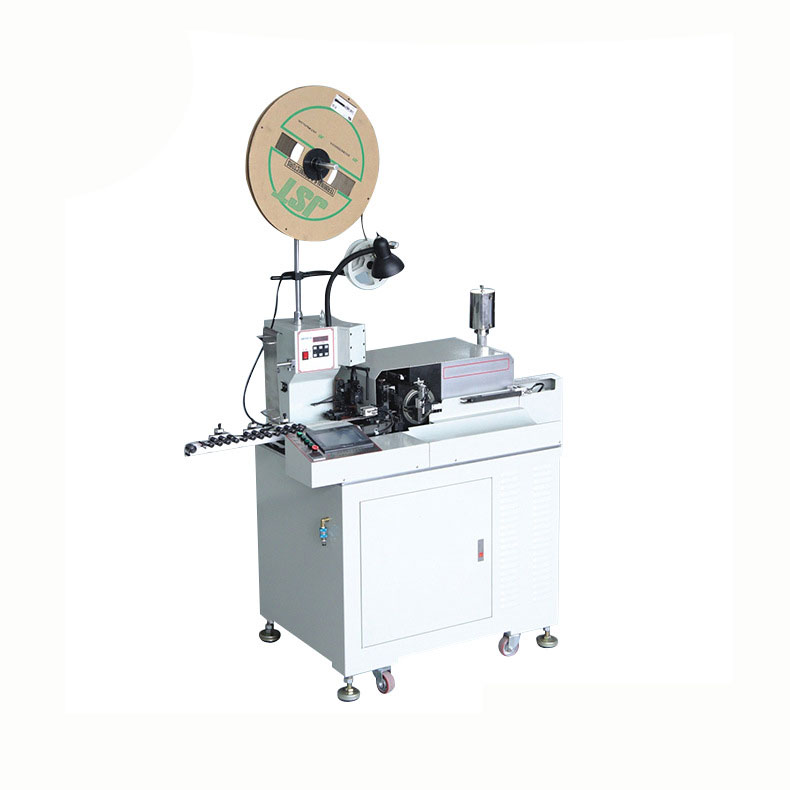

HR-03J Five Cable Stripping Crimping Tinning Machine

Item No.: HR-03J

Technical Data:

Model

HR-03J

Cable Size

AWG18#-AWG28#

Cutting Number

1pc

Cutting Length

30-9999mm

Stripping Length

1.5-10mm

Twisting Length

4-10mm

Soldering Length

4-10mm

Output

2200PC/H

Air Pressure

5-6kg

INQUIRY
Description

Machine Introduction:

This machine is mainly designed with electrical wire cutting stripping crimping of one end, and the other end stripping soldering, crimping process is with XY module design to increase accuracy of crimping.Front side is with full stripping, half stripping and crimping, rare side is with full stripping, half stripping and soldering. Our machine is easy to operate with digital computer control after simple training. All the core part of our HR-03J/HR-03E are with imported spare parts to make it more durable.

Technical Data:

Model

HR-03J

Cable Size

AWG18#-AWG28#

Cutting Number

1pc

Cutting Length

30-9999mm

Stripping Length

1.5-10mm

Twisting Length

4-10mm

Soldering Length

4-10mm

Output

2200PC/H

Air Pressure

5-6kg
