Model |
HR-1845(S) |
Binding diameter |
18-45mm |
Coil diameter |
50-200mm |
Binding length |
120-200mm |
Binding speed |
0.6 time/s |

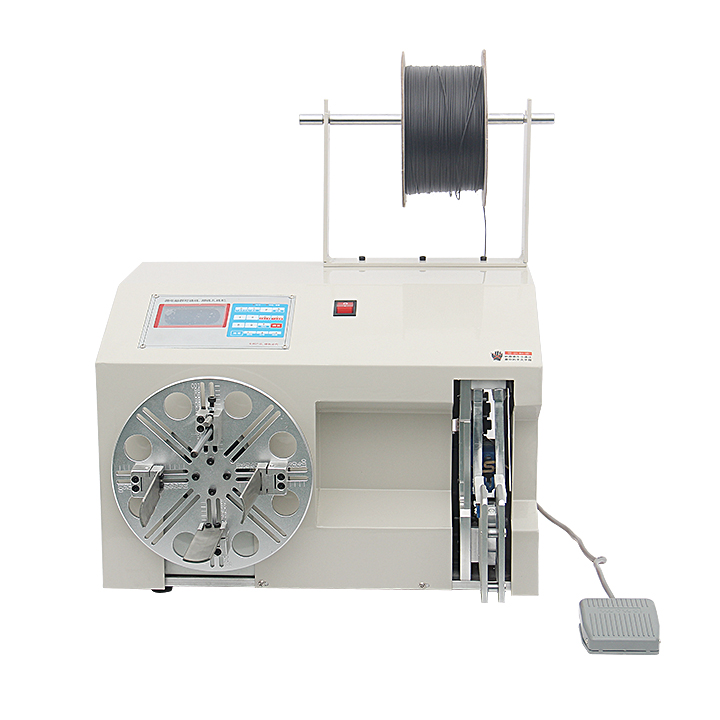

Machine Introduction
This machine equips with winding motor(winding motor and twisting motor are stepping motor), and adopts PLC computer program touch screen to control the length of the ribbon, automatic cutting and ribbon twisting. The number of turns can be set arbitrarily and the winding speed can be adjusted. This machine is suitable for AC power cord, DC power cord, USB data cable, video cable, HDMI cable.It can also be used for other rubber cores. Such as hangers, bathroom hoses and other industries.
Technical Data
Model |
HR-1845(S) |
Binding diameter |
18-45mm |
Coil diameter |
50-200mm |
Binding length |
120-200mm |
Binding speed |
0.6 time/s |
